วิธีควบคุมกล้องดิจิตอลรุ่นเก่าด้วยแอพมือถือ ลงทุนเพียง 1200 บาท

How to remote old dslr camera with mobile apps

This article mainly focus to how to setting router and how to remote capture photo via app. Not include guide capture timelapse, interval setting

ลงทุนเพียงน้อยนิด ปัดฝุ่นกล้องเก่ามาใช้งานให้หลากหลาย บทความนี้เน้นไปที่เตรียมอุปกรณ์ การควบคุมถ่ายภาพจากแอพในมือถือ ซึ่งความสามารถของตัวแอพทำได้มากกว่าตั้งถ่ายภาพ เช่น ตั้งเวลาถ่าย timelapse กดถ่ายวิดีโอ ผู้สนใจสามารถทดลองกดเล่นต่อไปได้ หรือศึกษาจากคู่มือที่เว็บ https://dslrdashboard.info/camera-control-screen/


Gear อุปกรณ์ที่จำเป็น:

  • Dslr camera like Canon 60D, Nikon D80
    กล้องดิจิตอลรุ่นธรรมดาที่ไม่มีระบบ wifi ในตัว
  • Data link cable
    สายถ่ายโอนข้อมูลที่แถมมากับกล้องตอนซื้อ
  • TP-Link MR3020 Portable 3G/4G Wireless N Router with hardware firmware version 1.0 or other wireless router running OpenWrt and DslrDashboardServer
    เร้าเตอร์แบบพกพา รุ่น MR3020 เท่านั้น รุ่นนี้หายากมาก ต้อง เฟิร์มแวร์รุ่นแรกด้วย ราคาประมาณ 700 กว่าบาท ถ้าหาได้
  • Laptop for setting router and write firmware
    คอมพิวเตอร์สำหรับตั้งค่าเร้าเตอร์ และอัพเฟิร์มแวร์
  • Mobile app – QDSLRDASHBOARD
    แอพควบคุม QDSLRDASHBOARD ราคาประมาณ 300 บาท

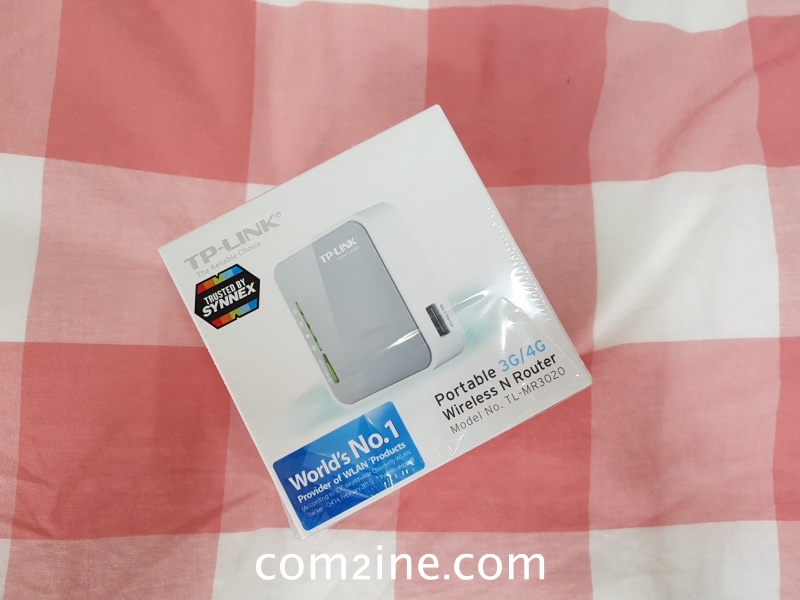

TP-Link MR3020 Portable 3G/4G Wireless N Router with hardware firmware version 1.0

Step to ขั้นตอนการทำหลังหา TP-Link MR3020 มาได้

  1. Download files the ‘factory’ and ‘sysupgrade’ OpenWrt image file that matches your TP-Link MR3020 from this page https://dslrdashboard.info/downloads/ in section TP-Link MR3020 ddserver OpenWrt firmware
    ดาวน์โหลดไฟล์ 2 ไฟล์จากหน้านี้ https://dslrdashboard.info/downloads/ ในหัวข้อ TP-Link MR3020 ddserver OpenWrt firmware

  2. Connect the MR3020 to your PC/Laptop with an Ethernet cable
    ต่อสายแลนระหว่างเร้าเตอร์กับคอมพิวเตอร์ ต่อไฟให้เร้าเตอร์ด้วยนะ
  3. Access the MR3020 OpenWrt web interface by opening a web browser and entering http://192.168.0.254 (the default username/password is admin/admin)
    พอไฟสถานะบนเร้าเตอร์นิ่งแล้ว ให้เปิด internet browser ขึ้นมาพิมพ์ว่า http://192.168.0.254 โดยใช้ชื่อ admin และรหัสว่า admin
  4. In the left menu select ‘System tools->Firmware upgrade’
    ไปที่เมนู ‘System tools->Firmware upgrade’
  5. Select the OpenWrt factory image file that you downloaded in step 1.
    เลือกไฟล์ที่ชื่อขึ้นต้นด้วย factory ที่ได้เตรียมไว้แล้ว
  6. Press the ‘Upgrade’ button
    กด ‘Upgrade’
  7. Wait 4-5 minutes so that the flash process finish. Monitor the MR3020 LEDs, they should go off and on after a successful firmware flash
    รอซักพักจนไฟดับแล้วกลับมาใหม่เอง จนนิ่งดี เท่ากับว่าครึ่งทางสำเร็จแล้ว
  8. Access the OpenWrt web interface from your web browser at http://192.168.1.1
    ทดลองเข้า http://192.168.1.1
  9. In OpenWrt web interface menu select ‘System->Backup/Flash firmware’
    ไปที่เมนู ‘System->Backup/Flash firmware’
  10. Under ‘Flash new firmware image’ section press the ‘chosse file’ button and select the image file that you downloaded in step
    เลือกไฟล์ sysupgrade ที่ได้เตรียมไว้
  11. Press the ‘Flash Image’ button – this will uploaded the firmware file to your MR3020
    กด ‘Flash Image’
  12. press the ‘Proceed’ button to start the firmware upgrade process
    Wait 2-3 minutes till the firmware process finishes. During the process the MR3020 LEDs will go off and the router will restart itself
    รอจนหน้าจอให้ยืนยันกด proceed อีกครั้ง รอจนเรียบร้อยตัวไฟเร้าเตอร์จะดับ และกลับมาอีกครั้ง เท่านี้กับเซตระบบของเร้าเตอร์เรียบร้อยแล้ว

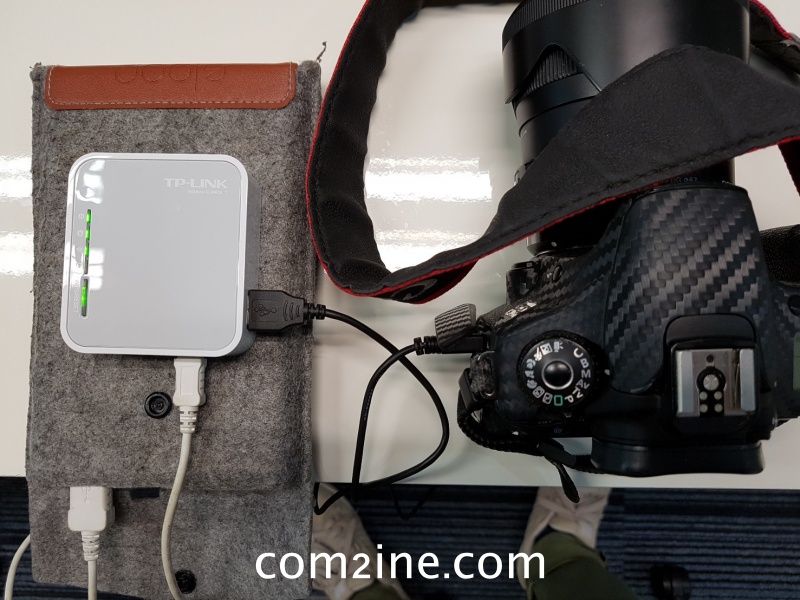

Connecting between DSLR Camera and Wireless router TP-Link MR3020

ทดลองเชื่อมต่อกล้อง โดย

  1. purchase app QDSLRDASHBOARD via appstore
    ดาวน์โหลดแอพให้เรียบร้อย แอพไม่ฟรีนะครับ
  2. open router TP-Link MR3020 wait till light stable
    เปิดเร้าเตอร์รอจนไฟนิ่ง
  3. switch on camera and connect cable between camera and router
    เปิดกล้องแล้วต่อสายเคเบิลระหว่างกล้องและเร้าเตอร์
  4. open app QDSLRDASHBOARD and click left top button (USB button) to search camera
    เปิดแอพขึ้นมา กดปุ่มเชื่อมต่อยูเอสบี มุมซ้ายบน
  5. finally test your shutter speed, ISO, focus from app QDSLRDASHBOARD
    ทดลองตั้งค่าถ่ายรูปต่างๆ เช่น จุดโฟกัส ความไวชัตเตอร์ ความไวแสง รูปที่ได้จะถูกบันทึกเข้ามาในมือถือด้วย

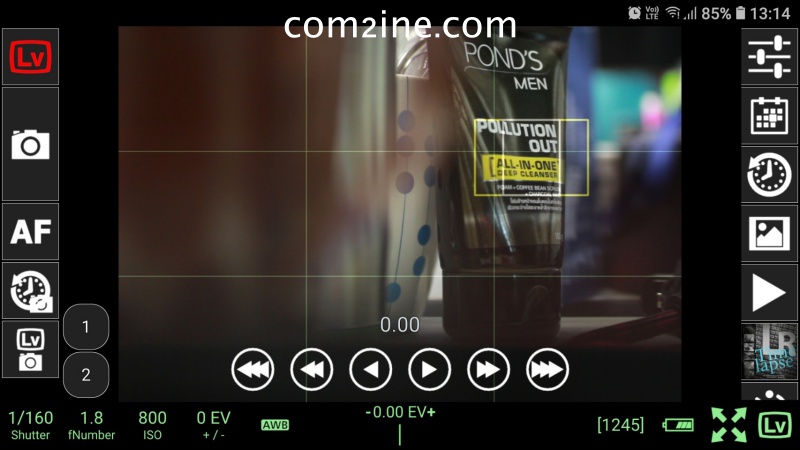

Screenshot from QDSLRDASHBOARD APP

You can use powerbank instead of wire power for outdoor use or on travel that make you can selfie with this item.
สามารถใช้ powerbank จ่ายไฟแทนได้ ทำให้สะดวกตอนพกไปถ่ายข้างนอก ยิ่งตอนไปเที่ยวที่ต้องตั้งกล้องถ่ายรูปตัวเองแล้ว ยิ่งดีไปเลย

With powerbank for traveler

แหล่งข้อมูล
https://dslrdashboard.info/
https://play.google.com/store/apps/details?id=info.qdd
https://www.tp-link.com/th/products/details/cat-4691_TL-MR3020.html
